IoT Water Quality Monitoring System
The system offers 24/7 water quality data management for a variety of environments, including land-based aquaculture, offshore aquaculture, rivers, and ponds.
Underwater sensors sample water quality data and transfer it to the cloud, allowing 24-hour monitoring via a web browser. The sensor modules can be powered by an outlet or solar power, making them suitable for locations without electrical outlets, such as offshore aquaculture sites. Additionally, the communication method supports both cellular networks and WiFi.
Measure multiple water quality parameters
We mainly measure water temperature / dissolved oxygen / salinity / pH /turbidity and chlorophyll. If you wish to measure water quality other than these, we can custom make water quality sensors and propose the combination you require.
Matrix overview of use cases
For coastal waters, the priority is ecosystem protection — Temperature, DO, Salinity, Chlorophyll, and Ammonium are your early-warning indicators.
For drinking water, the focus is compliance & treatment efficiency — pH, Turbidity, Temperature, and Ammonium are most critical.
For beach areas, the aim is public health & safety — Turbidity, Chlorophyll, DO, and pH are your go-to parameters.
Concept
It is possible to measure values such as water temperature, dissolved oxygen, salinity, pH, chlorophyll, turbidity, and ammonium. With the development of cascade technology, up to six sensors can be installed, allowing for the measurement of up to six different water quality parameters at a single location, or the measurement of a single water quality parameter at up to six different locations using one device.

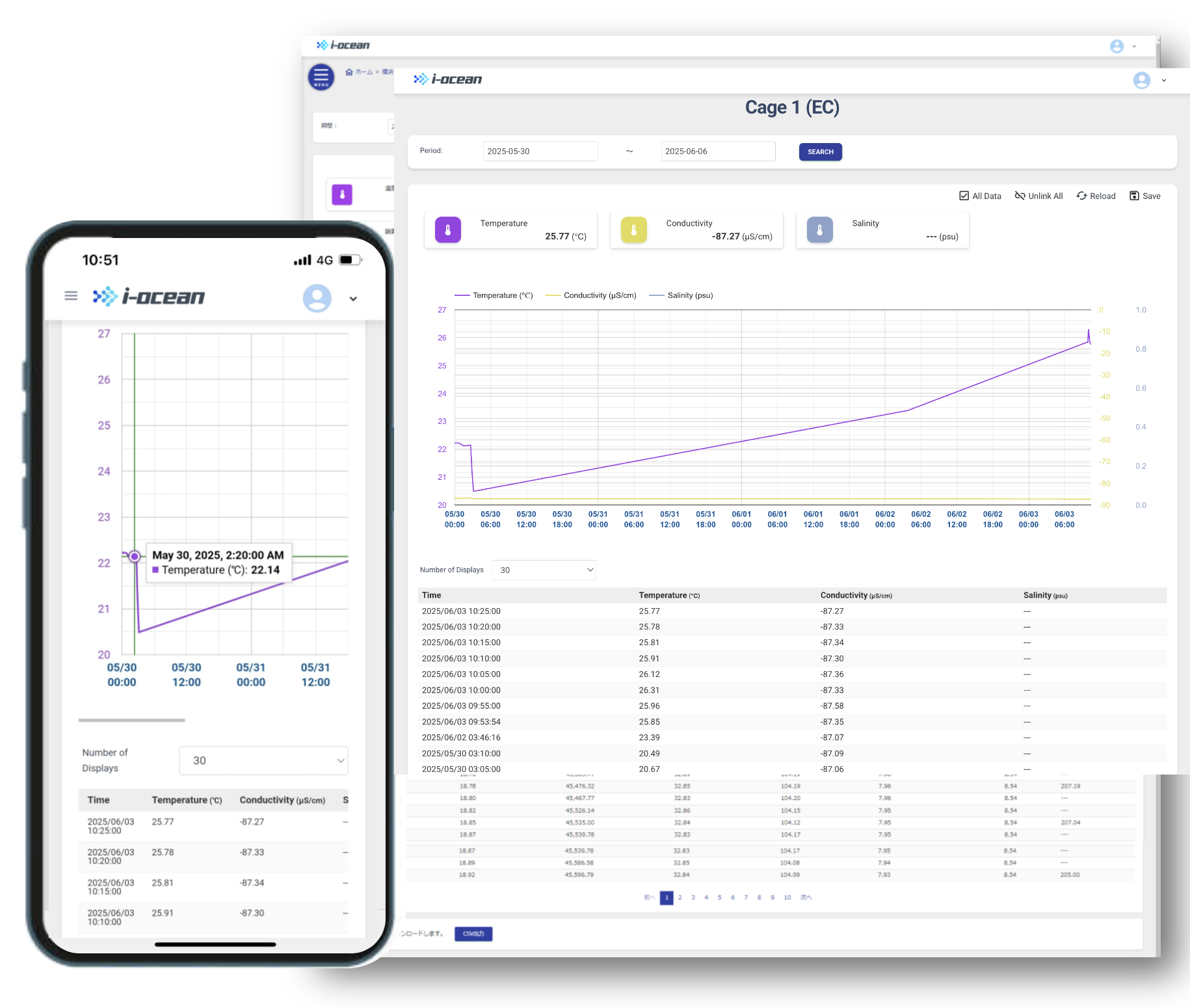

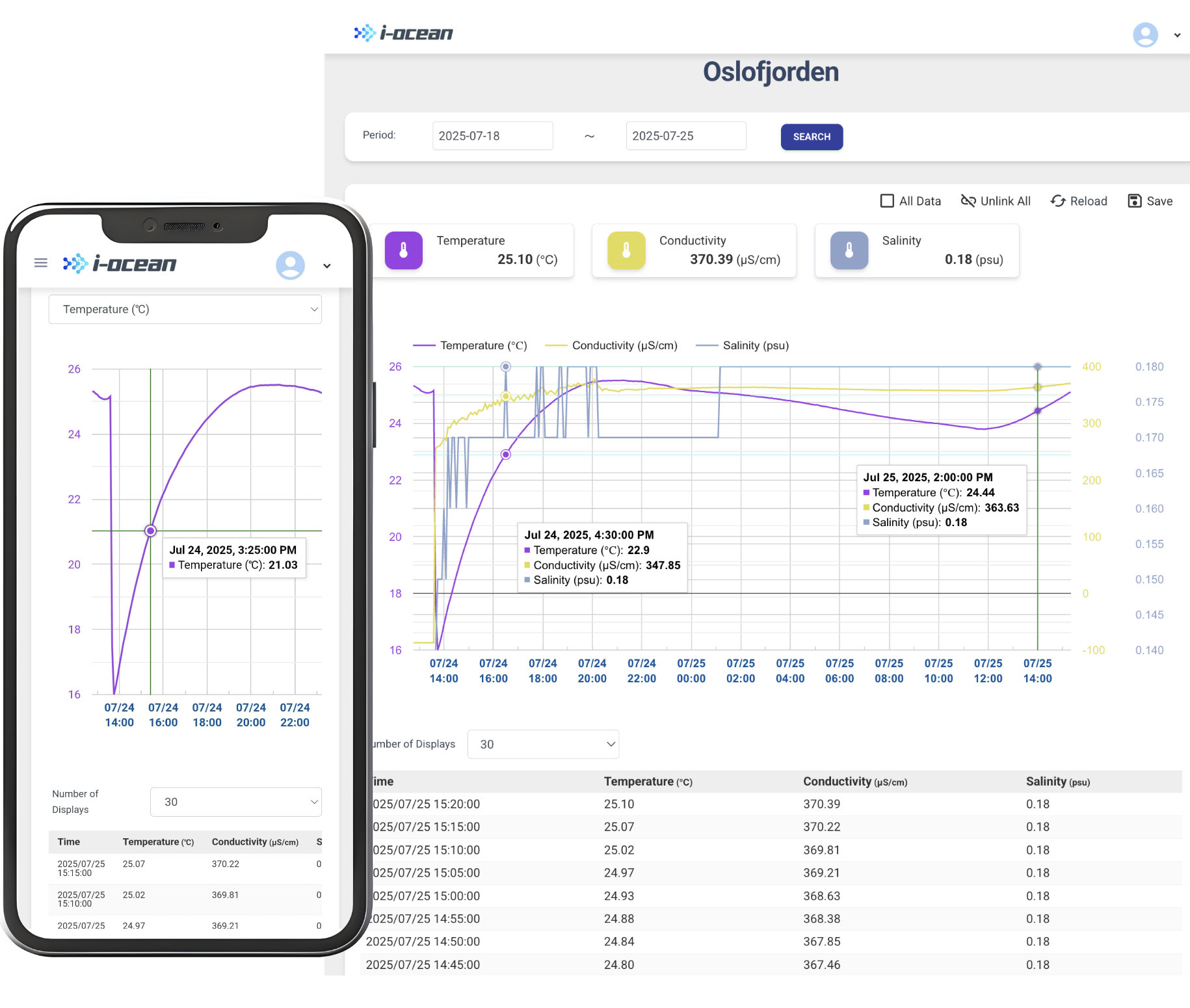

24/7 real-time monitoring
The IoT Water Quality Sensor is a service that allows 24-hour real-time management of water quality data from marine and land-based aquaculture, rivers and ponds from a PC or smartphone.

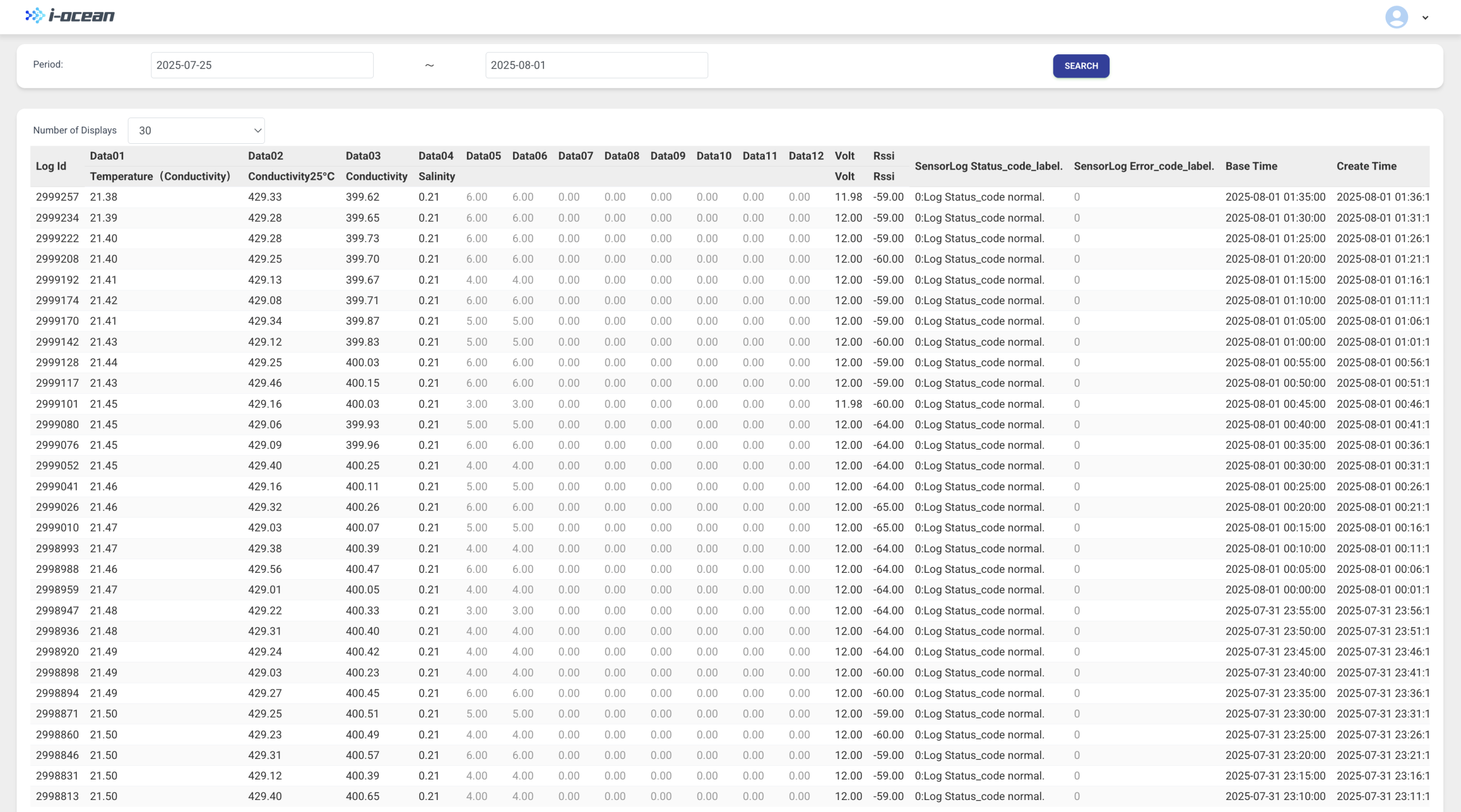

Measure data

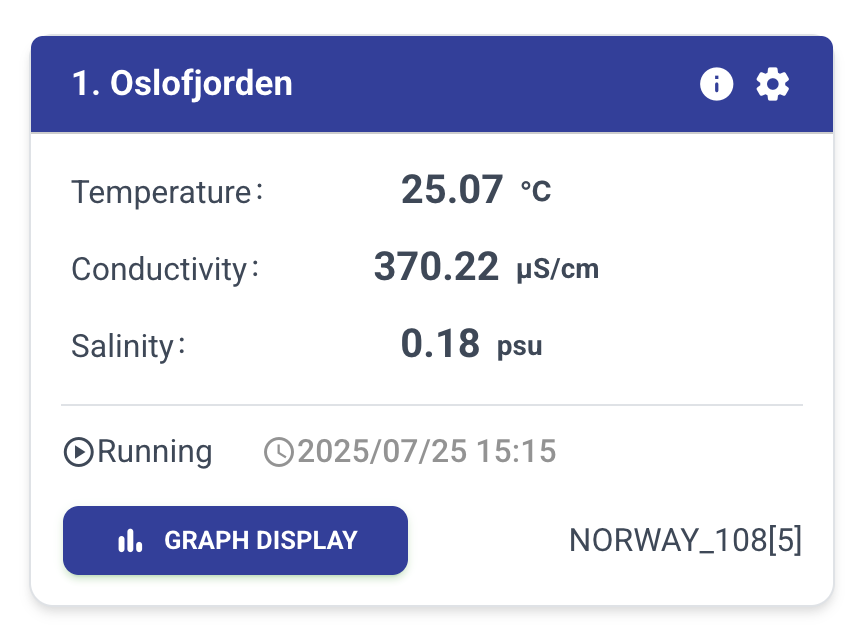

Comprehensive and detailed data overview. All sensors with values displayed in one dashboard.
Additionally, not only water quality sensors but also current sensors can be attached, enabling constant monitoring of whether the current is being delivered correctly and uninterruptedly to peripheral devices. If there is an abnormality in water quality, it can be immediately determined whether it is caused by peripheral devices. Customers who require water quality measurements at multiple locations can significantly reduce both initial and running costs.
Sensor calibrations
Sensors can be calibrated as time goes by. Easy to change depending on your needs and changes in the water.

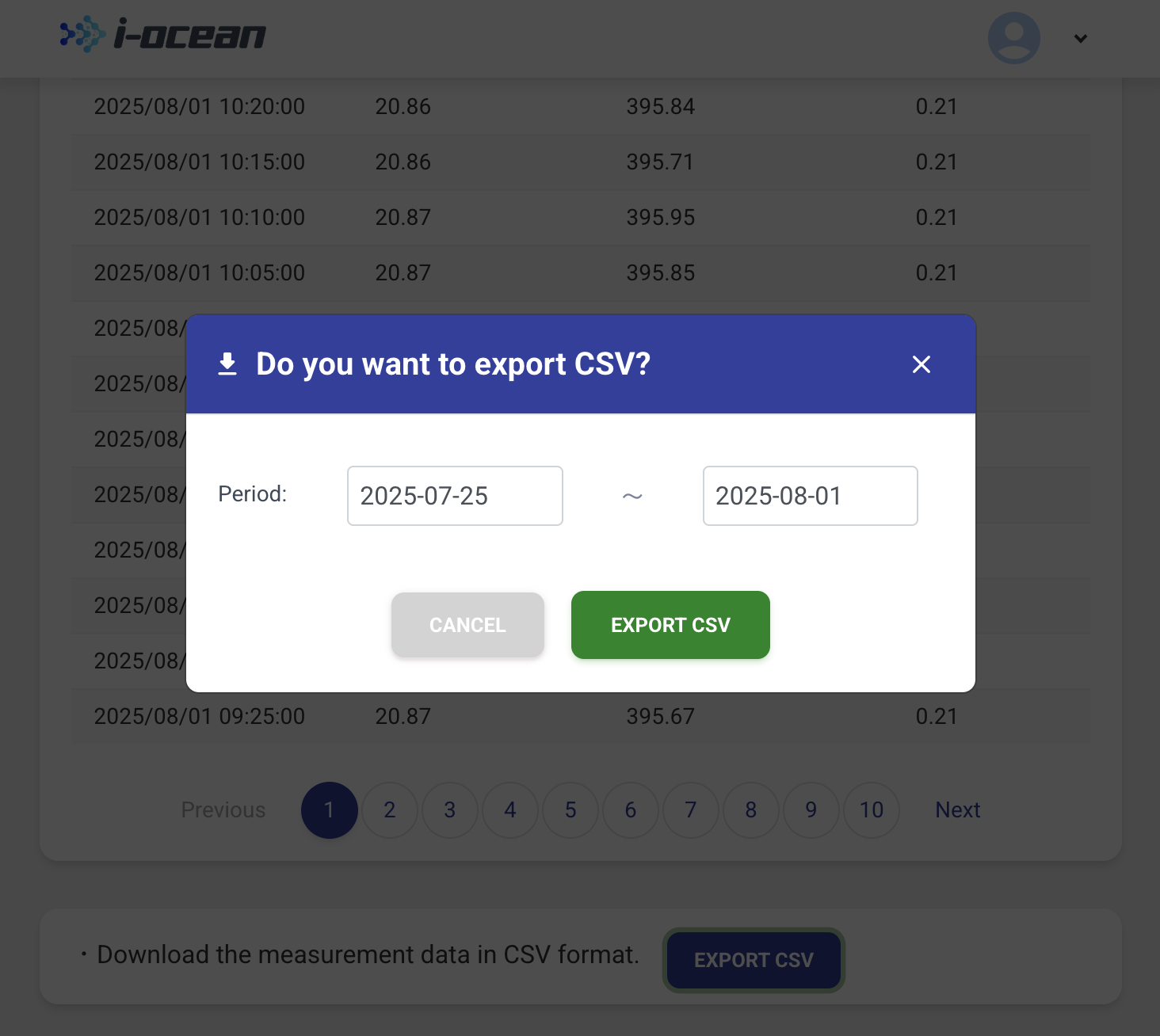

CSV file export
Easily export data via CSV.

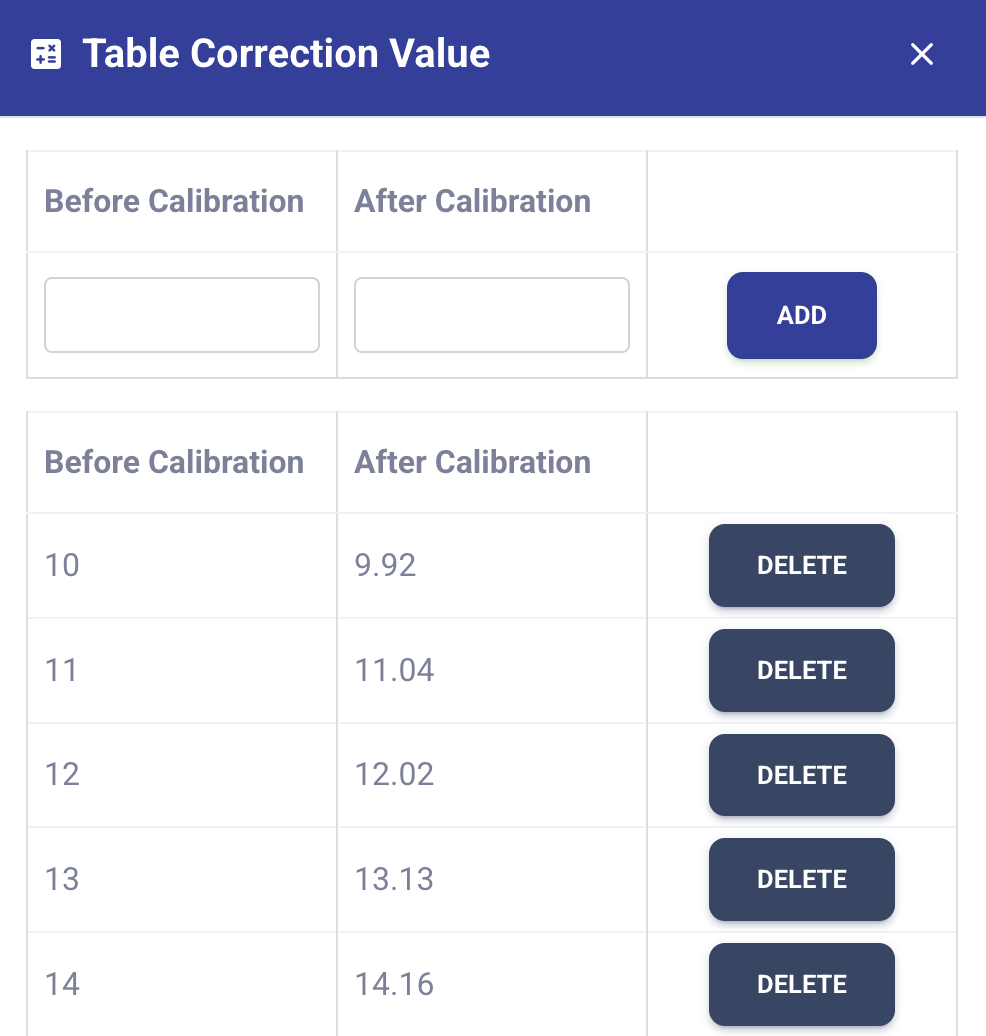

Correction of table values
Calibrations can be done with table corrections if needed or necessary.
Compact and easy to install
The control box is compactly manufactured at 20 cm (W) x 28 cm(D) x 6.5 cm (H), so it can easily be installed in small places.
You can choose from solar power or outlet power supply, cellphone line or Wi-Fi communication and up to 6 sensors. We will propose the optimal configuration for your use case.
